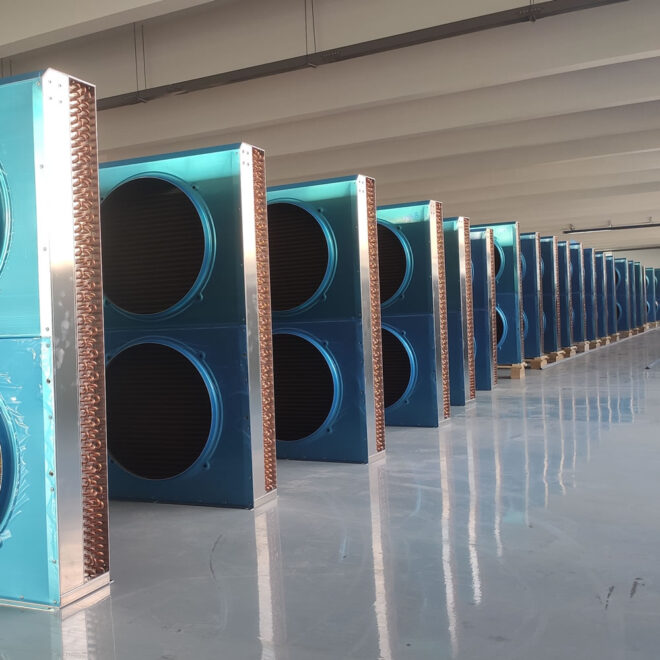

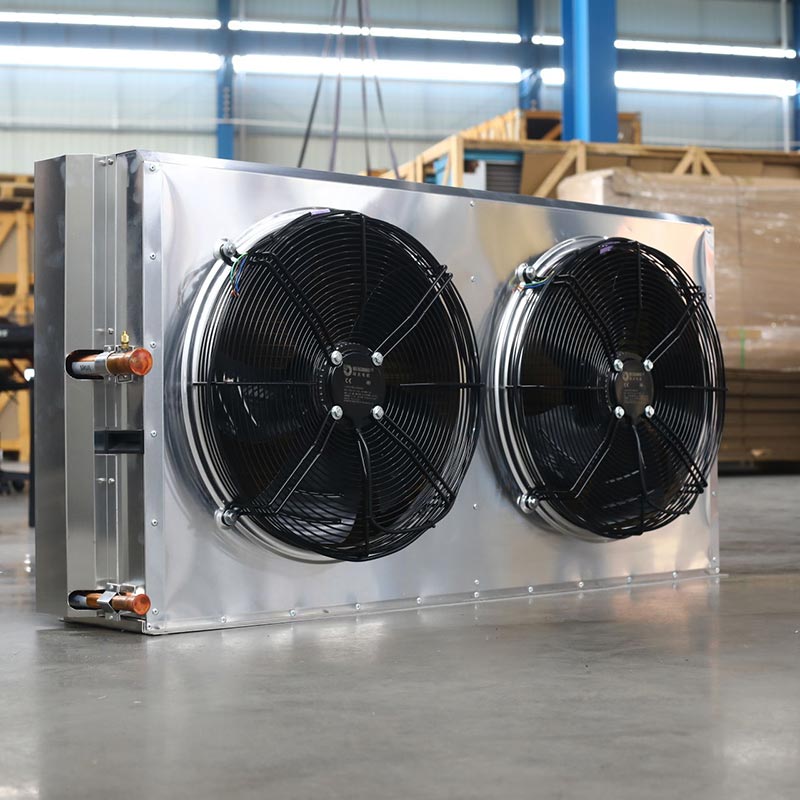

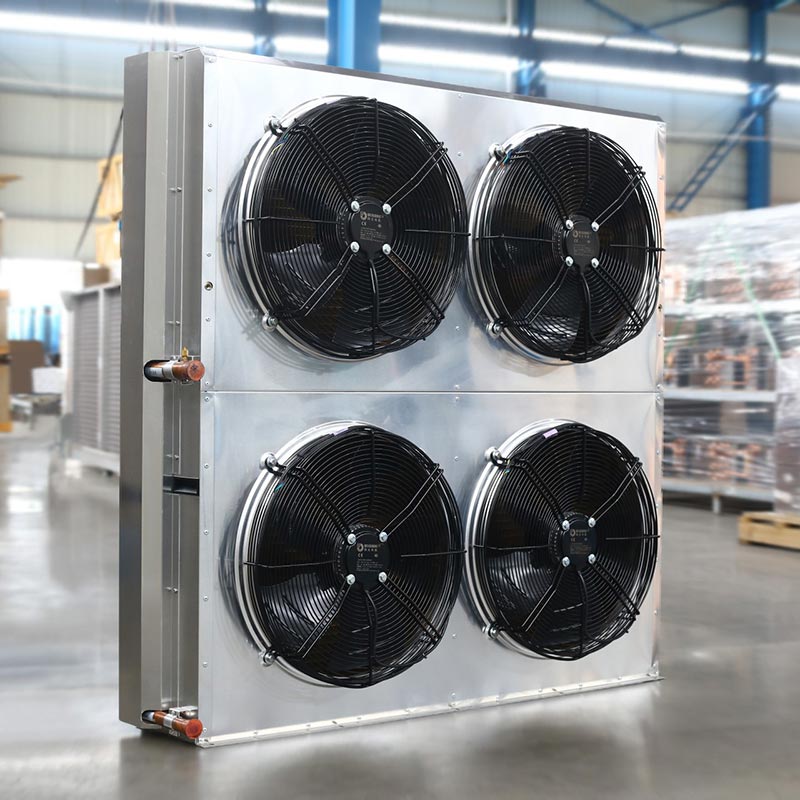

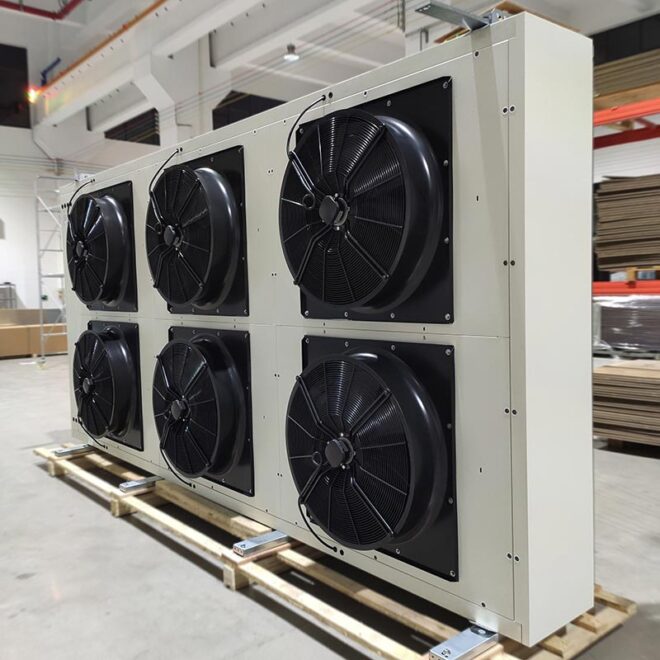

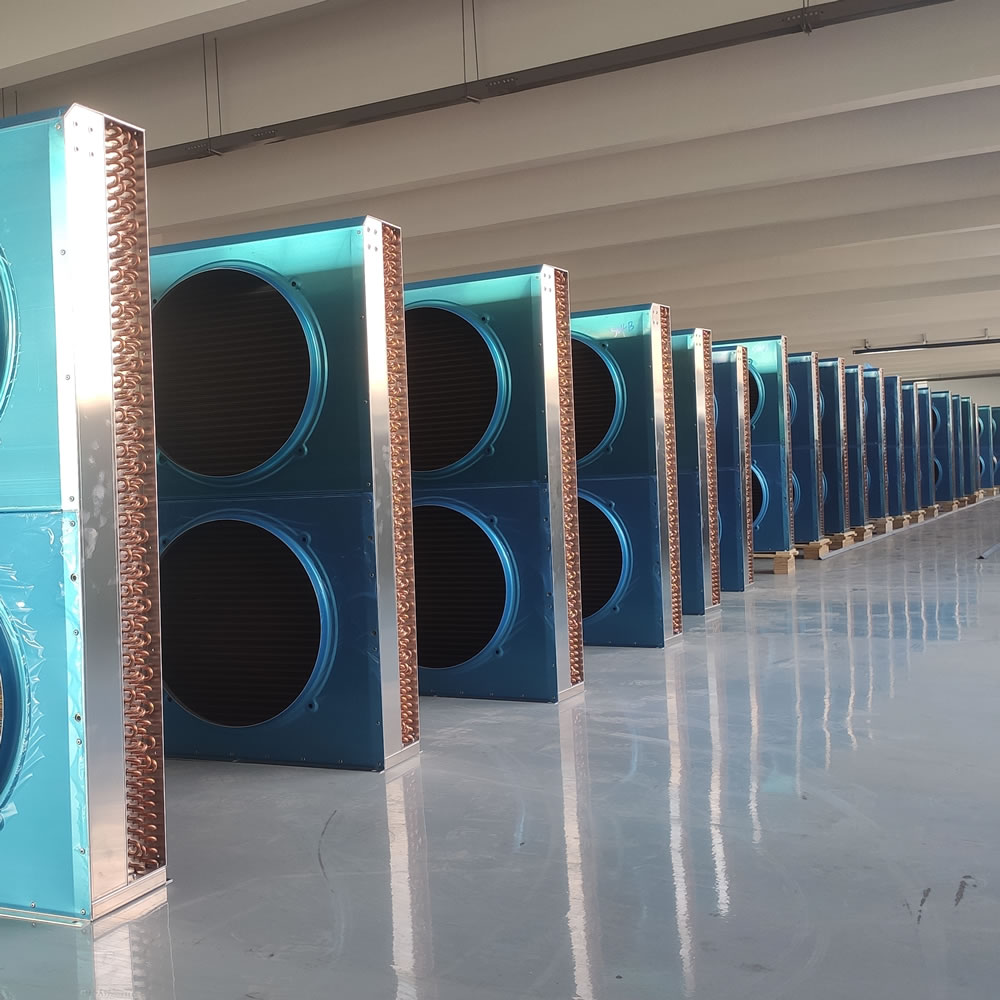

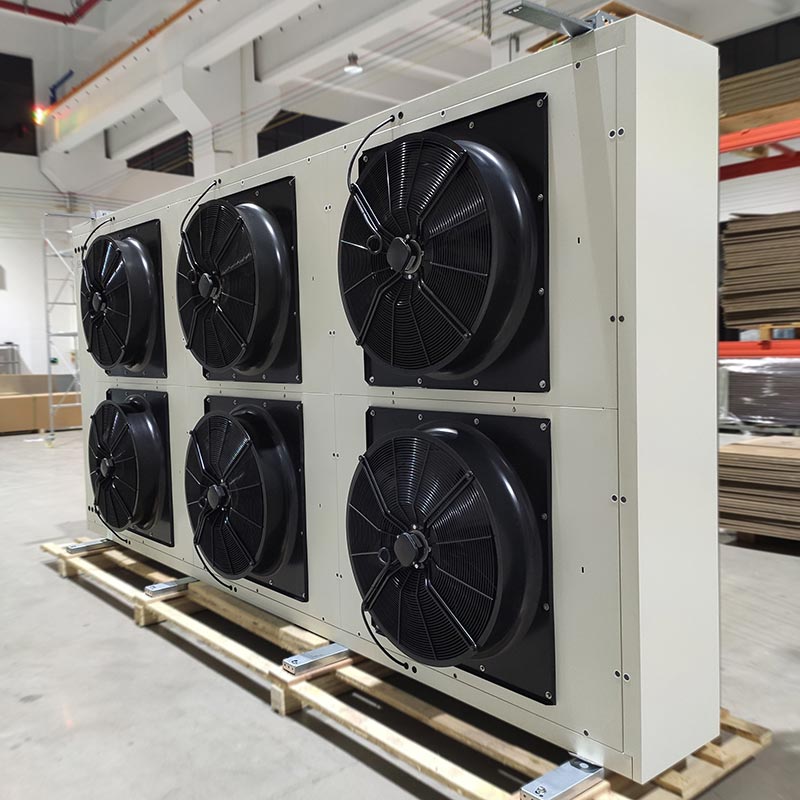

Air cooler condenser is one of the high efficient condensing heat exchangers designed for refrigeration compressor condensing units and multi-compressor units which is widely applied for cold room and freezer room. Ginyard brand GFH series air cooled condenser is designed with a fully enclosed, semi-hermetic compressor supporting the use of the condenser. Our air cooled condenser is made of high quality L-shaped aluminum fins, the distance from the bottom of the blade is greater than 1/3 the diameter of the fan which makes sure to reach an effective amount of wind. The heat transfer area ranges from 2 square meters to 170 square meters. Our GFH series air cooled condense is widely used in cold storage room project, refrigeration industry and central air conditioning mainframe equipment, etc.
GFH Series Air Cooled Condenser Features
⚙️ I. Core Structure & Configuration
- Dedicated Fan System:
Equipped with 400/450/500/550mm external rotor fans, ensuring high airflow with low noise operation (≤65 dB(A)) - Enhanced Heat Transfer Components:
Features 7mm internally grooved copper tubes (boosting internal heat exchange) + gold-coated corrugated fins (improved corrosion resistance & hydrophilicity)
🔥 II. Performance Advantages
- High Heat Flux Density Design:
Optimized circuit layout and tube-fin structure increase heat transfer efficiency per unit area by >20% - Low Refrigerant Charge:
Compact design reduces refrigerant requirements, lowering system costs and environmental risks - Long-Term Corrosion Resistance:
Gold-coated fins resist humid-environment corrosion, extending service life by 30% compared to conventional units

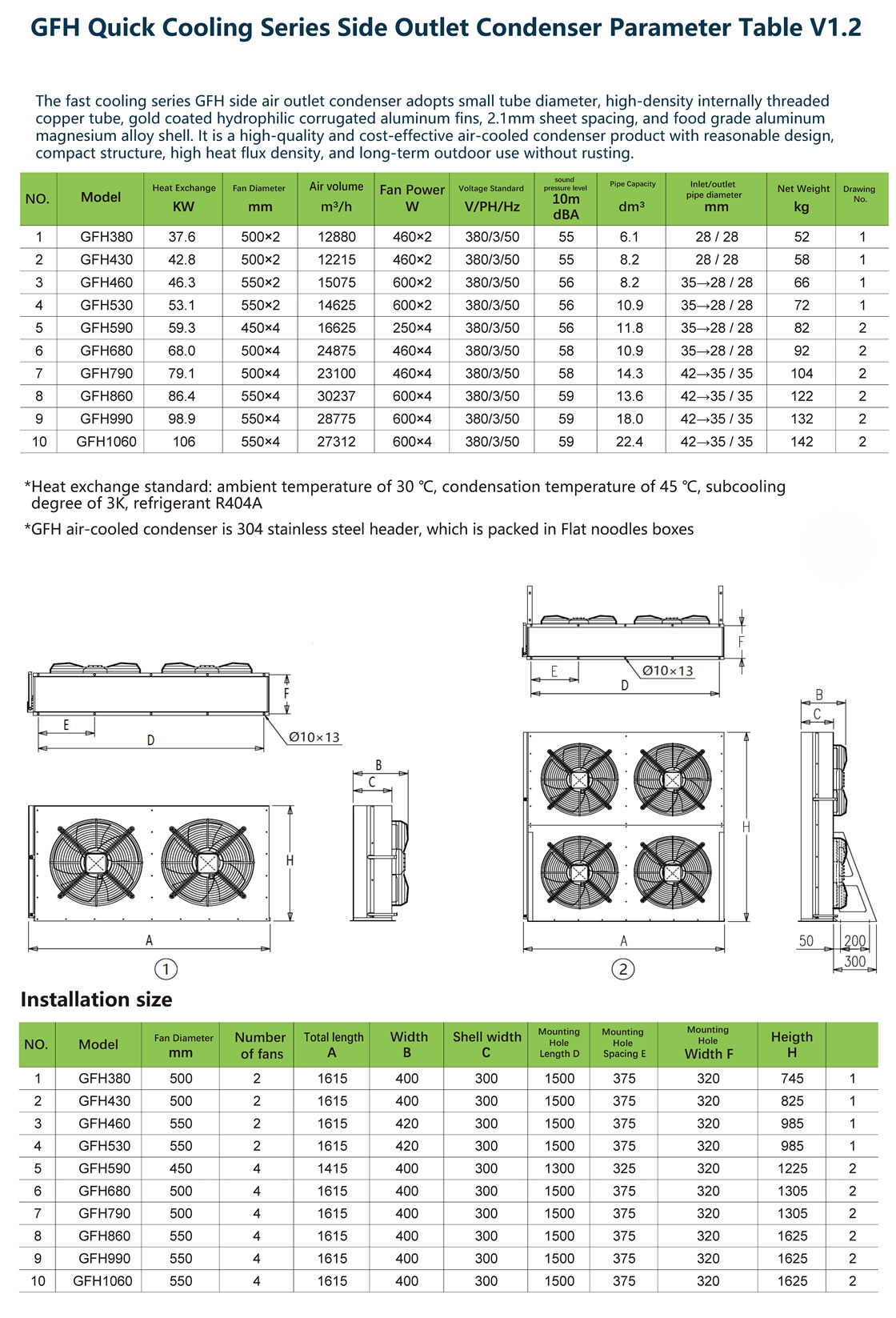

📊 III. Technical Parameters & Compatibility
| Feature | Specification |
|---|---|

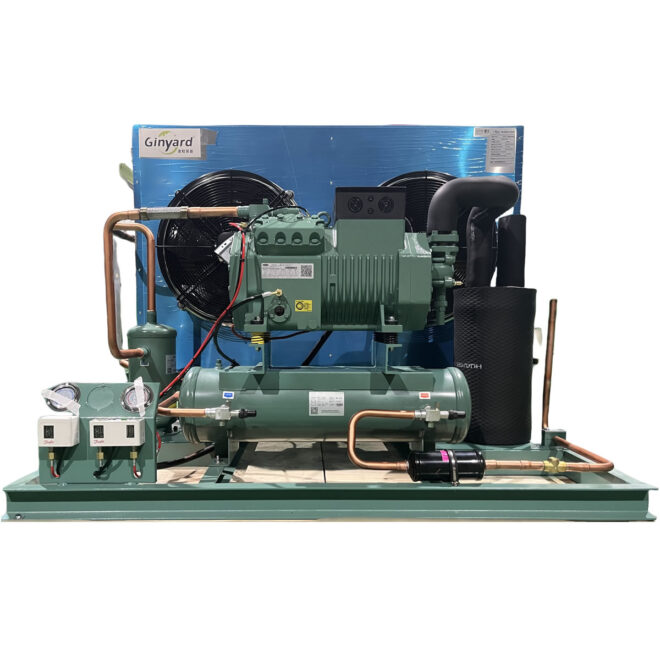

| Compatible Units | Scroll&Piston compressor -condenser units |
| Operating Pressure | Factory leak-tested at 2.8MPa (design pressure: 2.5MPa) |
| Refrigerant Compatibility | Supports R22, R134a, R404a, and other mainstream refrigerants |
| Ambient Temp. Range | ≤42°C (stable condensing temp. 7–12°C above ambient) |
⚠️ IV. Application Notes
- Installation Clearance: Requires ≥1.5m clearance for intake/exhaust airflow to prevent air short-circuiting.
- Maintenance Requirements: Regular fin cleaning (quarterly recommended) in dusty environments.
